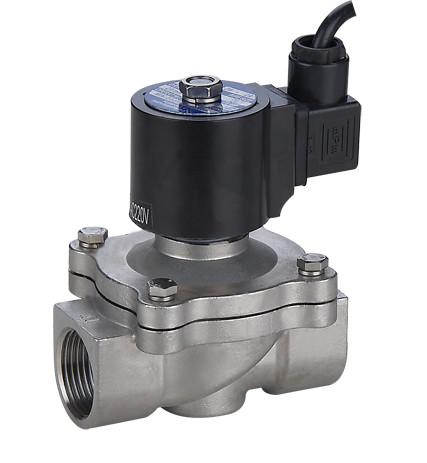

    underwater Fountain Solenoid Valve

    Ask Lasest Price
    Brand Name : ROUND STAR
    Model Number : SLDF-25J
    Certification : CEROHS
    Price : 20-100
    • Product Details
    • Company Profile

    underwater Fountain Solenoid Valve

    Filter and pressure regulator combine a single unit ,and cleans the compressed air of fluid oil,condensation and dirt particles.For special application,the standard 40μm filter element may easily be replaced by a 5μm filter element.

    The OR maintain imputting constant operating pressure despite fluctuation in line pressure and the amount of air consumed.



    SLDF series(underwater)solenoid valve external drawing



    SLDF series solenoid valve specification table


    modelOrifice size( mm )interface sizeCv

    working pressure

    (bar)

    A×B×C

    ( mm )

    normal order code


    valve body material

    AC220V

    G thread

    Material brass


    SLDF-15151/2"3.80 ~ 668×56×117SLDF-15-AC220V

    brass


    SS304

    SLDF-20203/4"7.60 ~ 673×56×123SLDF-20-AC220V
    SLDF-25251"120 ~ 6100×74×135SLDF-25-AC220V
    SLDF-323211/4"240 ~ 6110×85×154SLDF-32-AC220V
    SLDF-404011/2"300 ~ 6120×90×162SLDF-40-AC220V
    SLDF-50502"480 ~ 6185×112×185SLDF-50-AC220V
    SLDF-15SL151/2"3.80 ~ 676×68×107SLDF-15SL-AC220VPA66
    SLDF-20SL203/4"7.60 ~ 680×68×111SLDF-20SL-AC220V
    SLDF-25SL251"120 ~ 6107×82×117SLDF-25SL-AC220V
    SLDF-65JF65

    Flange

    connection

    530.3~8256×185×318SLDF-65JF-AC220VSS304
    SLDF-80JF80820.3~8277×200×327SLDF-80JF-AC220V
    SLDF-100JF1001290.3~8350×220×345SLDF-100JF-AC220V
    SLDF-150JF1502920.3~8450×285×400SLDF-150JF-AC220V
    SLDF-65CF65

    flange


    connection

    530.3~8258×185×330SLDF-65CF-AC220VCast iron
    SLDF-80CF80820.3~8280×200×330SLDF-80CF-AC220V
    SLDF-100CF1001280.3~8354×220×390SLDF-100CF-AC220V
    SLDF-125CF1252220.3~8430×250×470SLDF-125CF-AC220V
    SLDF-150CF1502920.3~8454×285×480SLDF-150CF-AC220V
    SLDF-200CF2005130.3~8573×340×590SLDF-200CF-AC220V

    SLDF flange series solenoid valve external dimension table


    modelPN=1.6MPa GB/T9113.1-2000 flange connection dimension (mm)
    DNLDHKdCfn-φ
    SLDF-65JF652561853181451182034-φ18
    SLDF-80JF802772003271601322038-φ18
    SLDF-100JF1003502203451801562238-φ18
    SLDF-150JF1504502854002402112438-φ22
    SLDF-65CF652581853301451182034-φ18
    SLDF-80CF802802003301601322038-φ18
    SLDF-100CF1003542203901801562238-φ18
    SLDF-125CF1254302504702101862238-φ18
    SLDF-150CF1504542854802402112438-φ22
    SLDF-200CF20057334059029526624312-φ22
