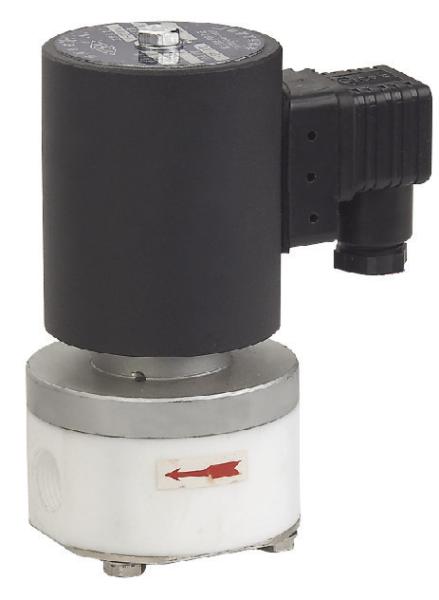

    PTFE Sodium Hydroxide 1/2"Solenoid Valve For Corrosive Liquid Gas

    Ask Lasest Price
    Brand Name : ROUND STAR
    Model Number : ZCF-20
    Certification : CE
    Price : 20-100
    Supply Ability : 200
    • Product Details
    • Company Profile

    PTFE Sodium Hydroxide 1/2"Solenoid Valve For Corrosive Liquid Gas

    Corrosion solenoid valve technical parameters


    Job status: normally closed - power open, power off normally open type - power open, power close
    Working medium: organic acid fluid · · · organic solvents body fluid clean · medicinal fluid
    Medium temperature: Ι type 100 ℃ Π type 200 ℃
    Nominal pressure: 1.0Mpa / 1.6Mpa
    Working pressure: 0-0.1Mpa 0-0.3Mpa 0.05-0.6Mpa
    Power supply voltage: AC220V / DC24V remaining specifications can be used for special orders
    Allowable voltage fluctuation range: ± 10%
    Explosion-proof mark: ExmIIT4
    Explosion-proof certificate number: GYB071325X
    Outlet connection: internal thread M20 × 1.5 or 1.5 m lead Explosion
    Ambient temperature: -5 ~ + 60 ℃ (not frozen)




    ZCF-series specification table


    model

    orifice size

    (mm)

    Interface sizeCv

    length×width×height

    (mm)

    working pressure

    (bar)

    normal order codeWeight Kg
    ZCF-33M8×10.2238×38×630 ~ 2ZCF-3-DC24V0.2
    ZCF-55G1/4"0.35φ49×940 ~ 4ZCF-5-AC220V0.5
    ZCF-1011G3/8"3.3φ69×1250 ~ 2ZCF-10-AC220V1.6
    ZCF-1511G1/2"3.3φ69×1350 ~ 2ZCF-15-AC220V1.6
    ZCF-2011G3/4"3.3φ72×1430 ~ 1ZCF-20-AC220V1.8
    ZCF-2511G1"3.3φ72×1490 ~ 1ZCF-25-AC220V1.8
