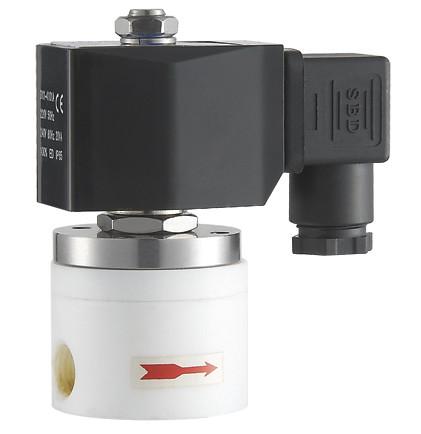

Anti Corrosive PTFE Solenoid Valve 1/4"Hydraulic Solenoid Valve PTFE

    Buy cheap Anti Corrosive PTFE Solenoid Valve 1/4"Hydraulic Solenoid Valve PTFE from wholesalers

    Buy cheap Anti Corrosive PTFE Solenoid Valve 1/4"Hydraulic Solenoid Valve PTFE from wholesalers
    • Buy cheap Anti Corrosive PTFE Solenoid Valve 1/4"Hydraulic Solenoid Valve PTFE from wholesalers
    • Buy cheap Anti Corrosive PTFE Solenoid Valve 1/4"Hydraulic Solenoid Valve PTFE from wholesalers

    Anti Corrosive PTFE Solenoid Valve 1/4"Hydraulic Solenoid Valve PTFE

    Ask Lasest Price
    Brand Name : ROUND STAR
    Model Number : zcf
    Certification : CE
    Price : 20-100
    Supply Ability : 200
    • Product Details
    • Company Profile

    Anti Corrosive PTFE Solenoid Valve 1/4"Hydraulic Solenoid Valve PTFE

    Explosion-proof solenoid valve works:


    NC: When the coil is energized, the electromagnet core pull, pressure relief hole to open the main piston driven by the medium pressure, open the main valve port, media circulation.
    When the coil power, turn off the main valve port, media cutoff.
    Normally open: When the coil is energized, the electromagnet core pull, pressure relief hole is closed, the main piston driven by the medium pressure, close the main valve port, media cutoff.
    When the coil power, open the main valve port, media circulation.




    ZCF-series specification table


    model

    orifice size

    (mm)

    Interface sizeCv

    length×width×height

    (mm)

    working pressure

    (bar)

    normal order codeWeight Kg
    ZCF-33M8×10.2238×38×630 ~ 2ZCF-3-DC24V0.2
    ZCF-55G1/4"0.35φ49×940 ~ 4ZCF-5-AC220V0.5
    ZCF-1011G3/8"3.3φ69×1250 ~ 2ZCF-10-AC220V1.6
    ZCF-1511G1/2"3.3φ69×1350 ~ 2ZCF-15-AC220V1.6
    ZCF-2011G3/4"3.3φ72×1430 ~ 1ZCF-20-AC220V1.8
    ZCF-2511G1"3.3φ72×1490 ~ 1ZCF-25-AC220V1.8
