DFD series 2-way pilot operated normally open brass stainless steel water air solenoid valve 3/8＂ ～ 3＂

working medium:water,liquid,air,light oil(viscosity≤20cst)

medium temperature:-5～80℃

working pressure:0.3～8bar(details see specification table)

working type:pilot operated(NO)

valvebody material:brass SS304

sealing material:NBR

interface:G thread NPT thread

Working voltage:AC220～240V AC110V 50/60Hz 18VA

DC24V DC12V 14W IP65

Options:

sealing material: EPDM VITON

digital timer LED light connector

Es low power energy saving coil(AC 4VA DC 4W)

valvebody material: SS316 Rc thread

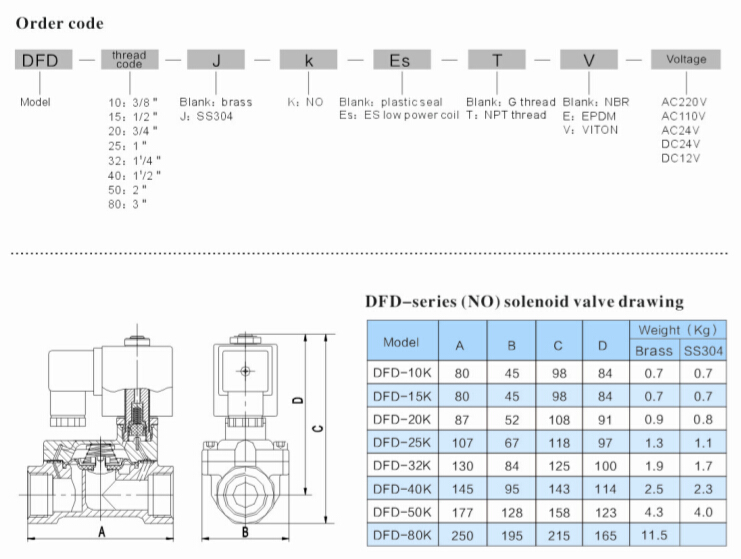

DFD-series 2-way pilot operated(NO)solenoid valve specification table

(ES coil can match EPDM and VITON, but medium temperature must be ≤80℃)

Options:

sealing material: EPDM VITON

digital timer, LED light connector

Es low power energy saving coil(AC 4VA DC 4W)

valvebody material: SS316, Rc thread

Founded in 1965, Yuyao No.4 Instrument Factory has been a professional manufacturer of solenoid valves and has enjoyed an excellent reputation through the past more than 50 years in China. With the introduction of foreign cutting-edge technology, and the sustained innovation and self-improving, the company has mastered the key technology and is keeping pioneer position in the field of fluid solenoid valve.

The company is equipped with superior production machines, advanced process flows, complete testing systems; the products have sophisticated structure, reliable performance, fine outlook and reasonable price, covering over 40 series and 3000 specifications, having been exported to all over the whole world since 2004.

Founded in 1965, Yuyao No.4 Instrument Factory has been a professional manufacturer of solenoid valves and has enjoyed an excellent reputation through the past more than 50 years in China. With the introduction of foreign cutting-edge technology, and the sustained innovation and self-improving, the company has mastered the key technology and is keeping pioneer position in the field of fluid solenoid valve.

The company is certified by the ISO9001:2000 and the GJB9001A-2001 military quality system, we have production license and 3C certificate for Ex-proof products, many products have passed the CE、ROHS、ACS、FDA、UL etc. international certifications. The company participated in drafting the national safety standards for GB30439.6—2014 solenoid valve, and is authorized to manufacture customized solenoid valves for the military products.

The company is equipped with superior production machines, advanced process flows, complete testing systems; the products have sophisticated structure, reliable performance, fine outlook and reasonable price, covering over 40 series and 3000 specifications, having been exported to more than twenty countries and areas, such as USA, France, UK, Germany, Italy, Australia, Russia, Taiwan, and the middle east countries etc., and our distributors spread all over the whole country.

The company owns high quality staff and professional R&D group, with strict and innovative attitude, we can customize products to cater specific requirements of customers, and provide fast-response after-sale support. We persist in “customer-first, integrity, human-oriented, excellence”, offering satisfied products and service to the customers on-promise, enhancing the “Round Star” brand.

Sincerely welcome to visit our company, looking forward to having a nice cooperation and common development.
