Flange Steam Solenoid Valve

    Buy cheap Flange Steam Solenoid Valve from wholesalers

    Buy cheap Flange Steam Solenoid Valve from wholesalers
    • Buy cheap Flange Steam Solenoid Valve from wholesalers

    Flange Steam Solenoid Valve

    Ask Lasest Price
    Brand Name : ROUND STAR
    Model Number : PS
    Certification : ISO CE ROHS
    Price : USD
    Payment Terms : T/T, Western Union
    Supply Ability : consult
    Delivery Time : 3 working days~ 2 weeks
    • Product Details
    • Company Profile

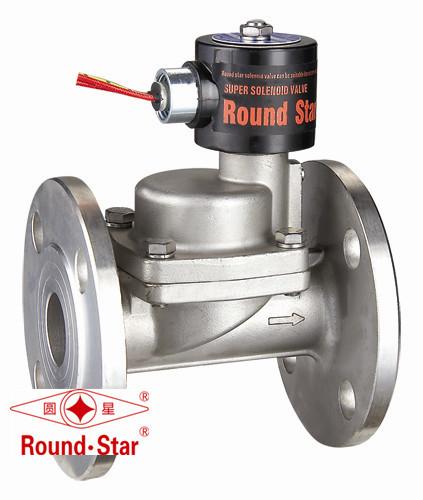

    Flange Steam Solenoid Valve

    PS series flange 2-way piston normally closed steam hot water solenoid valve DN15 ~ 80 mm


    The steam normally closed solenoid valve, the coil is energized, the armature in the electromagnetic force to drive the valve from the deputy Seti, fluid on the main valve cup in the auxiliary valve flow away, reducing the role of the main valve cup pressure when the pressure on the main valve cup is reduced to a certain value, the armature drive the main valve cup, and leaving the use of pressure to open the main valve cup, medium flow. Coil power, the electromagnetic force disappears, the armature is reset by its own weight fall. At the same time rely on media pressure, the primary and secondary valve to be tightly closed.



    PS-series flange(NC)solenoid valve specification table


    flange

    orifice

    (mm)

    Cv


    working pressure (bar)

    max

    medium

    temp.


    coil

    normal order code


    min

    pressure

    max pressure


    coil

    insulation


    power

    Plastic seal:IP65 H degree

    AC220V


    steam


    high temperature liquid

    (viscosity≤20cst)

    VA


    W


    AC

    220

    V

    DC

    24

    V

    ACDCACDCbrassSS304

    PS-15JF


    187.20.416161616180H2020PS-15JF-AC220V

    PS-20JF


    187.20.416161616180H2020PS-20JF-AC220V

    PS-25JF


    25120.416161616180H2020PS-25JF-AC220V

    PS-32JF


    32240.412121212180H2020PS-32JF-AC220V

    PS-40JF


    40300.412121212180H2020PS-40JF-AC220V

    PS-50JF


    50480.412121212180H2020PS-50JF-AC220V

    PS-80JF


    80750.410101010180H2020PS-80JF-AC220V

    PS-25F


    25120.416161616180H2020PS-25F-AC220V

    PS-32F


    32240.412121212180H2020PS-32F-AC220V

    PS-40F


    40300.412121212180H2020PS-40F-AC220V

    PS-50F


    50480.412121212180H2020PS-50F-AC220V

    PS-65CF


    65530.410101010180H4530PS-65CF-AC220V

    PS-series flange(NC)solenoid valve dimensions table


    modelPN=1.6MPa GB/T9113.1-2000 flange connection dimension (mm)
    DNLDHKdCfn-φ
    PS—15JF181069516565461424-φ14
    PS—20JF1810610516775561624-φ14
    PS—25JF2513511519085651634-φ14
    PS—32JF32140140218100761834-φ18
    PS—40JF40148150228110841834-φ18
    PS—50JF50182165243125992034-φ18
    PS—80JF802782003241601322038-φ18
    PS—25F2511811518785651634-φ14
    PS—32F32140140218100761834-φ18
    PS—40F40

    150

    150

    230

    110841834-φ18
    PS—50F50185165245125992034-φ18
    PS—65CF652561852691451182034-φ18

    Founded in 1965, Yuyao No.4 Instrument Factory has been a professional manufacturer of solenoid valves and has enjoyed an excellent reputation through the past more than 50 years in China.

    The company is equipped with superior production machines, advanced process flows, complete testing systems; the products have sophisticated structure, reliable performance, fine outlook and reasonable price, covering over 40 series and 3000 specifications, having been exported to more than twenty countries and areas, such as USA, France, UK, Germany, Italy, Australia, Russia, Taiwan, and the middle east countries etc., and our distributors spread all over the whole country.
