Anti Corrosive PVC Plastic Fluid Solenoid Valve 1/2"3/4"For Acid / Alkali Liquids

Yuyao No. 4 Instrument Factory
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Anti Corrosive PVC Plastic Fluid Solenoid Valve 1/2"3/4"For Acid / Alkali Liquids from wholesalers

    Buy cheap Anti Corrosive PVC Plastic Fluid Solenoid Valve 1/2"3/4"For Acid / Alkali Liquids from wholesalers
    • Buy cheap Anti Corrosive PVC Plastic Fluid Solenoid Valve 1/2"3/4"For Acid / Alkali Liquids from wholesalers

    Anti Corrosive PVC Plastic Fluid Solenoid Valve 1/2"3/4"For Acid / Alkali Liquids

    Ask Lasest Price
    Brand Name : ROUND STAR
    Model Number : ZCF-P-15
    Certification : CE
    Price : 20-100
    Supply Ability : 200
    • Product Details
    • Company Profile

    Anti Corrosive PVC Plastic Fluid Solenoid Valve 1/2"3/4"For Acid / Alkali Liquids

    Anti Corrosive PVC Plastic Fluid Solenoid Valve 1/2"3/4"For Acid / Alkali Liquids


    UPVC solenoid valve (also known as hard PVC), which is an amorphous thermoplastic resin plus certain additives by the polymerization of vinyl chloride monomer composition prepared. Have
    Strong mechanical properties, abrasion resistance, flame retardant, good dielectric properties, resistant to corrosion, can be adapted to general corrosive fluid. Fluid and metal parts (movable iron core, spring) completely isolated, to achieve a true structural corrosion. Substituted piston diaphragm valve long life. Pilot hole large aperture, the path is short and straight, can not easily be clogged particulate matter, precipitate or fluid crystals. Embedded sealing structure, sealing performance more reliable. It is widely used in detergents, printing and dyeing, paper waste and so on.



    ZCF-P-series anti-corrosive solenoid valve drawing



    ZCF-P-series anti-corrosive solenoid valve specification table


    model

    orifice size

    (mm)

    interface sizeCv

    working pressure

    (bar)

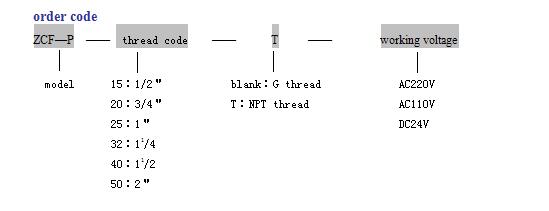

    DimensionNormal order code

    weight

    Kg

    A×B×C

    (mm)

    Voltage:AC220

    Thread:G thread

    ZCF-P-15151/2"4.80.1 ~ 674×63×138ZCF-P-15-AC220V1.1
    ZCF-P-20203/4"7.60.1 ~ 678×63×138ZCF-P-20-AC220V1.1
    ZCF-P-25251"110.1 ~ 698×73×148ZCF-P-25-AC220V1.2
    ZCF-P-323211/4"240.1 ~ 6120×94×171ZCF-P-32-AC220V1.5
    ZCF-P-404011/2"290.1 ~ 6130×94×180ZCF-P-40-AC220V1.5
    ZCF-P-50502"450.1 ~ 6172×155×225ZCF-P-50-AC220V2.6
