    Pilot Operated NC Solenoid Valve High Pressure , 15mm Solenoid Valve SS304

    Ask Lasest Price
    Brand Name : ROUND STAR
    Model Number : YSI
    Certification : ISO CE ROHS
    Price : USD
    Payment Terms : T/T, Western Union
    Supply Ability : ask for advice
    Delivery Time : 3~14 working days
    • Product Details
    • Company Profile

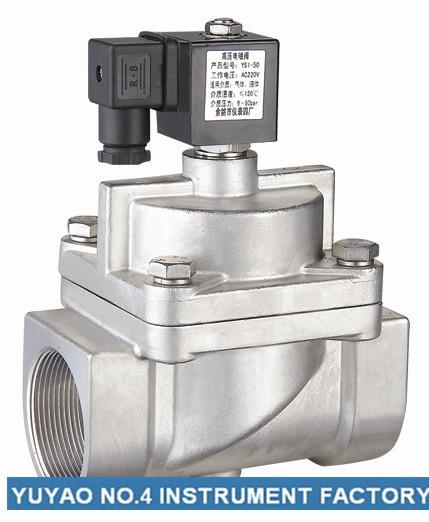

    Pilot Operated NC Solenoid Valve High Pressure , 15mm Solenoid Valve SS304

    YSI series 2-Way SS pilot operated ( NC ) high pressure solenoid valve DN 15~50mm


    high pressure solenoid valve Structural features


    Pilot diaphragm, the maximum pressure 6.0M MPa Air Force, Navy ancillary products

    Compact design and sophisticated appearance, low temperature rise, no noise, no leakage

    Action in response to the rapid, reliable and high-frequency technology in Germany, export series, quality

    The medium containing impurities, a filter must be installed before the valve (not less than 80 mesh strainer / cm 2); and no solidification or crystal phenomenon.



    YSI-series(NC)specification table (use ES coil,power will be about 1/4 of using normal coil)

    model

    orifice size

    ( mm )

    Interface sizeCvworking pressure(bar)

    length×width

    ×height

    ( mm )

    normal order code


    weight

    (Kg)

    AC200VDC24V

    Plastic seal

    AC220V

    G thread

    YSI-15J151/2"4.86~1006~10080×55×140YSI-15J - AC220V1.1
    YSI-20J203/4"7.66~1006~10090×60×153YSI-20J - AC220V1.6
    YSI-25J251"126~1006~100100×68×162YSI-25J - AC220V2.1
    YSI-32J3211/4"206~806~80110×80×170YSI-32J - AC220V2.6
    YSI-40J4011/2"306~806~80130×90×185YSI-40J - AC220V3.7
    YSI-50J502"486~806~80150×108×201YSI-50J - AC220V5.3

    YSI-series flange(NC)high pressure solenoid valve dimension table

    modelPN=2.5MPa GB/T9113.1-2000 flange connection dimension (mm)

    weight

    (Kg)

    DNLDHKdCfn-φ
    YSI—15JF151209517565461424-φ142.5
    YSI—20JF2013010518875561624-φ143.5
    YSI—25JF2514011521085651624-φ144.3
    YSI—32JF32160140218100761824-φ186.4
    YSI—40JF40170150232110841824-φ187.8
    YSI—50JF50200165258125992024-φ1811.1
