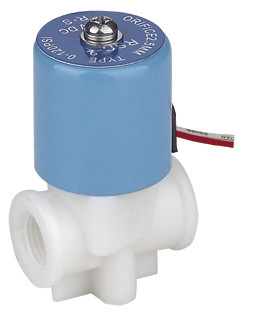

High Performance Blue RO Solenoid Valve 1/8 "DN2.5MM 24VDC NPT Thread

    Buy cheap High Performance Blue RO Solenoid Valve 1/8 "DN2.5MM 24VDC NPT Thread from wholesalers

    Buy cheap High Performance Blue RO Solenoid Valve 1/8 "DN2.5MM 24VDC NPT Thread from wholesalers
    • Buy cheap High Performance Blue RO Solenoid Valve 1/8 "DN2.5MM 24VDC NPT Thread from wholesalers

    High Performance Blue RO Solenoid Valve 1/8 "DN2.5MM 24VDC NPT Thread

    Ask Lasest Price
    Brand Name : Round Star
    Model Number : RSC-1
    Certification : CE/ROHS/ISO/FDA/TUV
    Price : USD+1.2-2.5+PCS
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 30,000pcs per month
    Delivery Time : 10 working days after received your payment
    • Product Details
    • Company Profile

    High Performance Blue RO Solenoid Valve 1/8 "DN2.5MM 24VDC NPT Thread

    RSC-1 water dispenser solenoid valve 1/8 " DN2.5 AC220V DC24V NPT thread


    Technical parameters

    working medium:water,hot water

    medium temperature:0~100℃

    working pressure:0~8bar(details see specification table)

    working type:RSC-1 RSC-2 direct acting(NC)

    RSC-8 RSC-10 RSC-12 diaphragm type(NC)

    sealing material:RSC-1 RSC-2 EPDM(-10~130℃) VMQ(-10~130℃)

    RSC-8 RSC-10 RSC-12 VMQ

    valvebody material:PP POM

    interface:NPT thread cannula

    Working voltage:AC240V AC220/110V 50/60Hz 7VA DC24/12V 5.5W IP54 B degree voltage could be custom made


    Great quality products

    We stand behind the quality of our products 100%

    All of our items come with a warranty to give you a peace of mind.

    New Guaranteed: All of our items are in new condition in OEM or Original packing


    RSC-series solenoid valve specification table


    model

    Interface

    size

    orifice size

    (mm)

    Cv


    working pressure(bar)powermaterial

    weight

    (Kg)

    AC220DC24VAC220VDC24V
    RSC-1NPT1/8"2.50.20~80~87VA5.5WPP0.13
    RSC-2NPT1/4"2.50.20~80~80.13
    RSC-2cannulacannula2.50.20~80~8POM0.13
    RSC-2Lcannula2.50.20~80~80.13
    RSC-8cannula81.3600mmH2OPP0.14
    RSC-10cannula102.30.14
    RSC-12cannula123.00.13

    RSC-series water dispenser solenoid valve drawing



    High Performance Blue RO Solenoid Valve 1/8 "DN2.5MM 24VDC NPT Thread


    Packaging & Shipping

    liquid solenoid valveliquid solenoid valveliquid solenoid valveliquid solenoid valveliquid solenoid valveliquid solenoid valveliquid solenoid valveliquid solenoid valveliquid solenoid valveliquid solenoid valve

    Our Services

    liquid solenoid valve

    FAQ

    liquid solenoid valve

    skype:cici19894


    Quality High Performance Blue RO Solenoid Valve 1/8 "DN2.5MM 24VDC NPT Thread for sale
