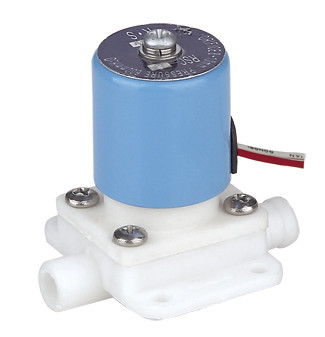

RSC-8 water dispenser solenoid valve quick connector DN8MM AC220V DC24V cannula

characteristic : 1.Driect acting miniature construction at low power consumption

2.Food class body material available for RO system,Washer,miller,etc

medium: Air ,water ,etc

Temperature: NBR Seal -10F to 80

EPDM Seal :-10F to 80

VITON Seal:-10F to 80

Pressure : 0.0MPa~0.7MPa

Port Size: 1/4''

Port Thread : BSPP BSPT NPT

Orifice(mm) : 2.5

voltage: DC-12V,24V

AC-24V,120V,240V/50Hz

Tolerance: +/-10%

Coil: AB 12B,6VA(AC),6W(DC),IP65,100%ED

SA11B,9VA(AC),8W(DC),IP65,100%ED

SA11B,9VA(AC),8W(DC),IP65,100%ED

Material : Body-Nylon,PP,POM

Seal-VITON ,NBR,EPDM,Silicon rubben

Armature Tube -Stainless steel 304

Plunger-stainless steel 430F

Stop-ss430F

Springs-ss304

Technical parameters

working medium:water,hot water

medium temperature:0～100℃

working pressure:0～8bar(details see specification table)

working type:RSC-1 RSC-2 direct acting(NC)

RSC-8 RSC-10 RSC-12 diaphragm type(NC)

sealing material:RSC-1 RSC-2 EPDM(-10～130℃) VMQ(-10～130℃)

RSC-8 RSC-10 RSC-12 VMQ

valvebody material:PP POM

interface:NPT thread cannula

Working voltage:AC240V AC220/110V 50/60Hz 7VA DC24/12V 5.5W IP54 B degree voltage could be custom made

RSC-series solenoid valve specification table

RSC-series water dispenser solenoid valve drawing
