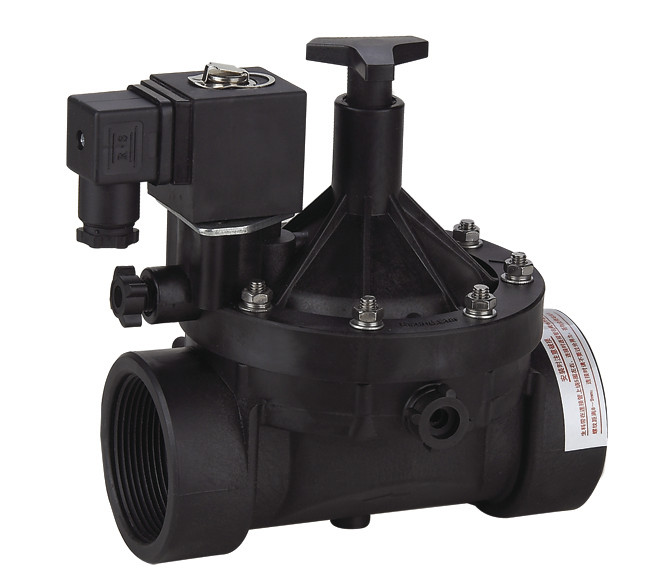

irrigation bistable latching solenoid valve one inch plastic
material 12V 24V 220V 230V 240V
working medium:liquid,water,air,light oil(viscosity≤20cst)
medium temperature:-5 ～ 80℃
working pressure:0.3～16bar (details see specification table)
working type:DN1.5～4 direct acting DN15～50 pilot operated
valvebody material: brass SS316 PA66
sealing material:NBR(-5～80℃)
interface:G thread NPT thread
working voltage:DC6V DC9V DC12V DC24V
4W 6W 12W IP65 H degree
Options:
sealing material:EPDM(-10～130℃) VITON(-10～120℃)
YSZ-series pilot operated solenoid valve specification table
| model | orifice size ( mm ) | Interface size | Cv | working pressure(bar) | length×width×height ( mm ) | weight(Kg) |
| air | Water liquid | brass | SS | PA66 |
| YSZ - 15 | 14 | 1/2＂ | 3.5 | 0.3～16 | 0.3～12 | 66×48×112 | 0.7 | 0.6 | |
| YSZ - 20 | 20 | 3/4＂ | 7.6 | 0.3～16 | 0.3～12 | 75×58×118 | 0.8 | 0.7 | |
| YSZ - 25 | 25 | 1＂ | 12 | 0.3～16 | 0.3～12 | 96×69×125 | 1.3 | 1.2 | |
| YSZ - 32 | 32 | 11/4＂ | 22 | 0.3～16 | 0.3～10 | 131×96×125 | 2.8 | 2.8 | |
| YSZ - 40 | 40 | 11/2＂ | 30 | 0.3～16 | 0.3～10 | 131×96×150 | 2.6 | 2.6 | |
| YSZ - 50 | 50 | 2＂ | 48 | 0.3～16 | 0.3～10 | 168×128×165 | 3.9 | 3.6 | |
| YSZ–15SL | 15 | 1/2＂ | 3.5 | 0.3～7 | 0.3～7 | 85×73×126 | | | 0.6 |
| YSZ–20SL | 20 | 3/4＂ | 7.6 | 0.3～7 | 0.3～7 | 90×73×128 | | | 0.6 |
| YSZ–25SL | 25 | 1＂ | 12 | 0.3～7 | 0.3～7 | 125×90×148 | | | 0.6 |
| YSZ–32SL | 32 | 11/4＂ | 22 | 0.3～7 | 0.3～7 | 150×128×173 | | | 0.8 |
| YSZ–40SL | 40 | 11/2＂ | 30 | 0.3～7 | 0.3～7 | 152×128×176 | | | 0.9 |
| YSZ–50SL | 50 | 2＂ | 48 | 0.3～7 | 0.3～7 | 170×140×190 | | | 1.1 |
Technical Features
1, energy-saving, energy saving, no heating coil, both normally
open, normally closed function, bistable pulse, a wide range.
2, leading technology: This series of reference to foreign
technology and manufacturing techniques, with distinctive styling
and technical quality;
3, the unique structure: Space design inspiration, flying saucer
piston, lightweight and flexible, flow, long life;
4, explosion-proof grade: dⅡCT5 is the highest level of domestic
valve industry obtained superior electrical safety performance of
other manufacturers;
5, sealing: conical seat, wear self-compensation, the unique
three-dimensional structure of the seal, flexible matching of
different sealing materials;
6, the guide features: universal guide valve, so that movement of
the piston never off-center, so as to avoid living Fonseca dead;
