    NO Miniature Hydraulic Valves Half Inch 1/2 " Solenoid Directional Valve

    Ask Lasest Price
    Brand Name : Round Star
    Model Number : YSV
    Certification : CE/ROHS/TUV/FDA
    Price : negotiation
    Payment Terms : Western Union, MoneyGram, T/T
    Supply Ability : 5000pcs per month
    Delivery Time : 3 working days after received your payment
    • Product Details
    • Company Profile

    NO Miniature Hydraulic Valves Half Inch 1/2 " Solenoid Directional Valve

    brass miniature solenoid valve direct acting normally open NO half inch 1 / 2 " AC220V 110V 230V


    working principle: NC: When the coil is energized, the pilot spool pull the pilot hole is open, the pressure relief valve chamber, the piston on the lower chamber medium pressure to promote the solenoid valve is opened; When the coil power, the pilot valve by spring return, pilot hole is closed, valve chamber and pressurized by the piston return spring throttle thrust, the solenoid valve is closed. Normally open: When the coil is energized, the pilot hole is closed, valve chamber and pressurized by the piston return spring throttle thrust, the solenoid valve is closed. When the coil power, the pilot valve by spring return, pilot hole is open, pressure relief valve chamber, the piston on the lower chamber medium pressure to promote the solenoid valve is opened.

    VX2 YSX YSV YSV-K -series(NC,NO)solenoid valve specification table

    model

    Orifice size

    (mm)


    interface size


    Cv


    working pressure (bar)dimensionvalvebody material

    Weight

    (Kg)

    length×width×height

    (mm)

    AC220DC24V
    YSX—42.01/8"0.120~8φ25×57SS3040.15
    VX2—015—081.5

    1/8"

    OR

    1/4"

    0.060~300~3041×27×81

    brass

    SS304

    0.36
    VX2—020—082.00.120~250~2041×27×810.36
    VX2—025—082.50.200~250~1641×27×810.36
    VX2—030—083.00.250~160~1241×27×810.36
    VX2—040—084.00.300~120~1041×27×810.36
    YSV—040—1043/8"0.300~150~1250×25×82brass0.47
    YSV—050—1050.500~60~650×25×820.47
    YSV—040—1541/2"0.300~150~1250×28×850.50
    YSV—050—1550.400~60~650×28×850.50
    YSV—060—1560.700~30~350×28×850.50

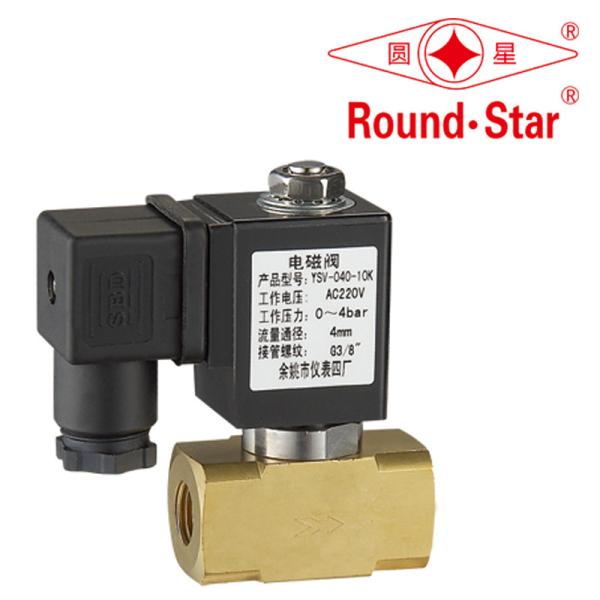

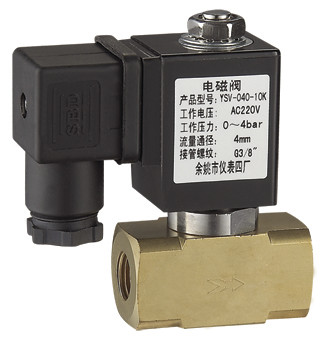

    YSV—040—10K43/8"0.300~40~450×25×840.45
