    Rsz Series Self Sustaining Bistable Solenoid Valve 3/8" - 2"

    Ask Lasest Price
    Brand Name : Round Star
    Model Number : RSZ
    Certification : CE/ROHS
    Price : negotiation
    Payment Terms : Western Union, MoneyGram, T/T
    Supply Ability : 3,000pcs per month
    Delivery Time : 10 working days after received your payment
    • Product Details
    • Company Profile

    Rsz Series Self Sustaining Bistable Solenoid Valve 3/8" - 2"


    RSZ series 2-way bistable self-sustaining pulse solenoid valve 3/8"~ 2"


    Widely used in water-saving irrigation, automatic induction sanitary ware, landscaping, automatic irrigation, drip irrigation and other automation control.


    working medium:air water liquid

    medium temperature:-5~80℃

    Working type:direct current pulse type(NC )

    valvebody material:brass SS316

    sealing material:NBR

    interface:G thread NPT thread

    working voltage:DC2.5~6.5V IP67

    coil resistance:25Ω

    min current:190mA

    pulse width:≥10ms

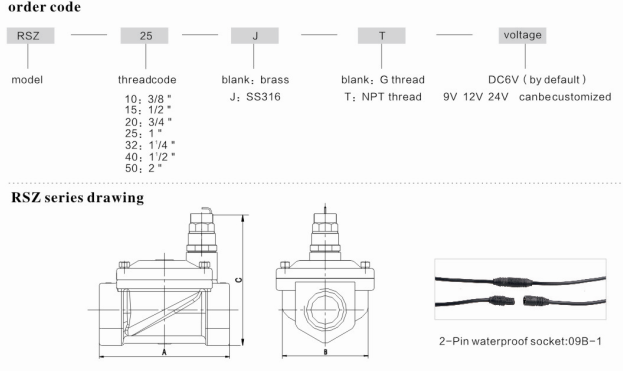

    RSZ series specification

    model

    Orifice

    ( mm )

    interfaceCv

    Working pressure

    (bar)

    A×B×C

    ( mm )

    Normal order codeWeight(Kg)

    Voltage DC6V

    Copper body G thread

    RSZ - 10133/8"3.50.3~866×48×94RSZ–10 - DC6V0.5
    RSZ - 15131/2"3.50.3~866×48×94RSZ–15 - DC6V0.5
    RSZ - 20203/4"7.60.3~875×58×100RSZ–20 - DC6V0.65
    RSZ - 25251"120.3~896×69×107RSZ–25 - DC6V1.2
    RSZ - 323211/4"200.3~8131×96×132RSZ–25 - DC6V2.6
    RSZ - 404011/2"300.3~8131×96×132RSZ–40 - DC6V2.4
    RSZ - 50502"480.3~8165×120×147RSZ–50 - DC6V3.7
