    Bistable Latching Solenoid Valve

    YSG series 2-way bistable self-sustaining pulse solenoid valve 1/2"~ 2"


    Widely used in agriculture automatic irrigation, landscaping, automatic irrigation, drip irrigation and other automatic control. Can also be used for other gases, Hydraulic Control


    working medium:water,liquid,air

    medium temperature:-5~80℃

    working type:direct current pulse

    valvebody material:reinforced nylon PA66(German)

    sealing material:NBR

    interface:G thread NPT thread

    working voltage:DC2.5~6.5V IP67

    coil resistance:25Ω

    min current:190mA

    pulse width:≥10ms

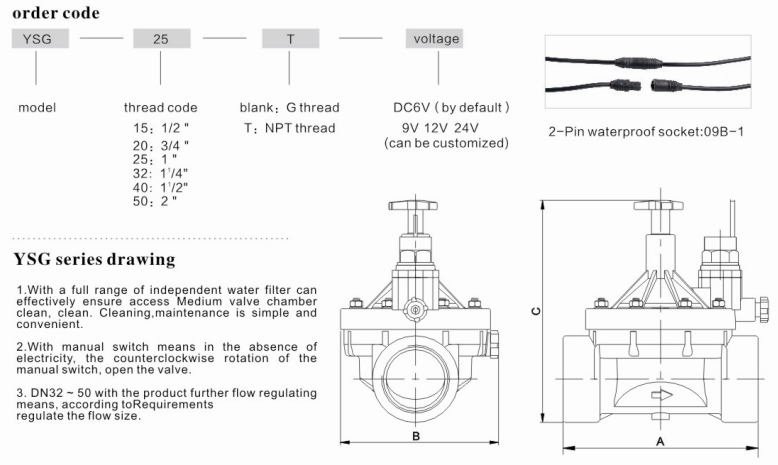

    YSG series specification

    model

    Orifice

    ( mm )

    interfaceCvWorking pressure (bar)

    A×B×C

    ( mm )

    Normal order codeWeight(Kg)
    airWater liquid

    Voltage DC6V

    Plastic material

    G thread

    YSG-15151/2"3.50.3~80.3~885×73×126YSG–15 – DC6V0.4
    YSG-20203/4"7.60.3~80.3~890×73×128YSG–20 - DC6V0.4
    YSG-25251"120.3~80.3~8125×90×148YSG–25 - DC6V0.4
    YSG-323211/4"200.3~80.3~8150×128×173YSG–32 - DC6V0.7
    YSG-404011/2"300.3~80.3~8151×128×176YSG–40 - DC6V0.8
    YSG-50502"480.3~80.3~8170×140×190YSG–50 - DC6V1.0

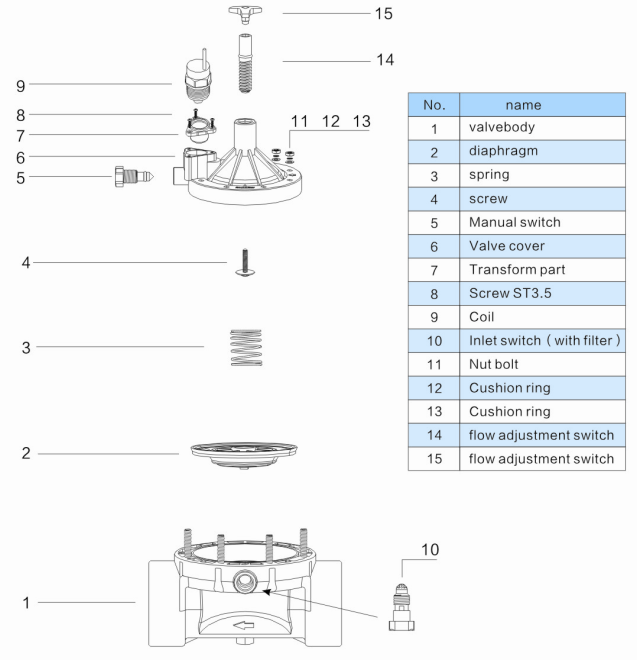

    Components:

    1.With a full range of independent water filter can effectively ensure accessMedium valve chamber clean, clean. Cleaning, maintenance is simple and convenient.With manual switch means in the absence of electricity, the counterclockwise rotation of the manual switch, open the valve

    2. DN32 ~ 50 with the product further flow regulating means, according to Requirements regulate the flow size.
